Tapered Short Guided

Tapered Short guided

Tapered Short Guided

Tapered Short Guided

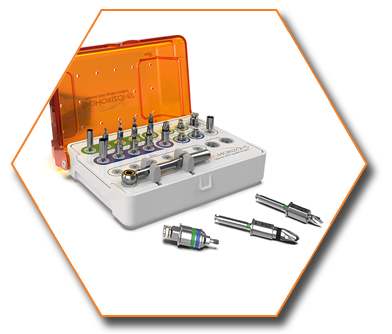

The BioHorizons Tapered Short Guided kit offers a new approach to guided surgery, specifically designed for the Tapered Short implants. The updated instrument designs minimize stack height, while the keyless drill design simplifies the surgical workflow.

Tapered Short guided surgery

components

1. Clinical step - CT scan appointment

Initial patient records and CT scan. CT scan protocols will vary depending on the guide manufacturer. Guide manufacturers details are available at Workflow Partners

2. Clinical step - Treatment plan

Diagnose and treatment plan for guided surgery. Determine if adequate vertical space is available to accommodate the surgical guide and related components. Import CT scan data into the treatment planning software and design the case.

3. Guide manufacturer step - Guide fabrication

Guide manufacturer fabricates the surgical guide using the virtual treatment plan and BioHorizons master cylinders. A patient-specific surgical protocol is generated for the clinician to follow.

4. Clinical step - Guided surgery

Clinician performs the procedure using the surgical guide and the BioHorizons Tapered Short Guided kit while following the surgical protocol.

Tapered Short dental implants
connection
3.5mm
4.5mm
body diameter
4.6mm
5.8mm
Laser-Lok zone
1.8mm
1.8mm
6.0mm length
7.5mm length
Tapered Short dental implants
implant body
TSL4606
4.6x6.0mm
TSL4607
4.6x7.5mm
TSL5806
5.8x6.0mm
TSL5807
5.8x7.5mm
master cylinder
TSGGMC
TSGGMC
TSGBMC
TSGBMC
prosthetic connection
3.5mm platform 3.5mm
3.5mm platform 3.5mm
4.5mm platform 4.5mm
4.5mm platform 4.5mm
implant driver
TSGG60
TSGG75

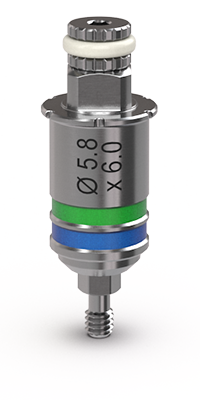

TSGB60

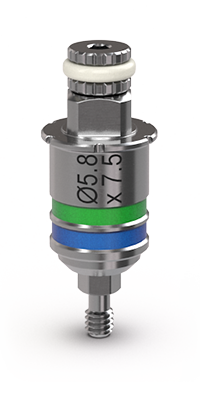

TSGB75
Tapered Short Implant Drivers

literature

Not available in all countries.



×
