abutments & components

abutments

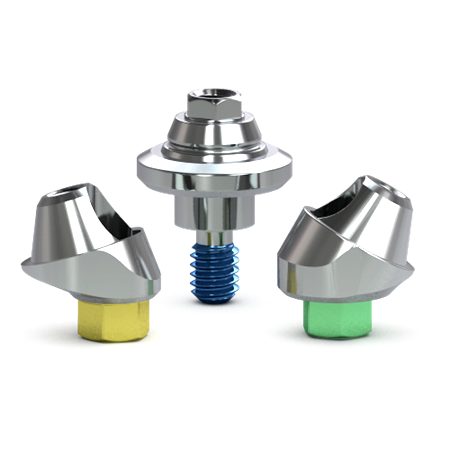

Multi-unit abutments

angled Multi-unit abutments

Provides the greatest range of angulation correction and least lateral offset, ensuring uncompromised strength, versatility and simplicity.

45° conical connection

Multi-unit abutments feature a self-centering 22.5° of angulation correction to help ensure a passive prosthetic fit and restorative flexibility to diverging implants.

low profile, sculpted design

Abutment emergence profiles seat easily on implants in shallow or deep tissue and provide optimal soft tissue contouring with a wide variety of collar heights.

retained abutment screw

For one-handed delivery of angled abutments with either an .050" Hex or Unigrip™ Driver.

Multi-unit abutments

The BioHorizons Multi-unit abutment system provides the tools to restore even compromised edentulous cases. With a wide variety of abutment angles, collar heights and platform diameters, no system better equips you to plan for your patients' individual needs. The Multi-unit abutment's intelligent design and restorative flexibility is matched only by its ease of use and surgical efficiency.

the BioHorizons advantage

  • Greatest range of sizes, heights & angled options compared to any other large competitors
  • Only system offering a multi-unit abutment on a 3.0mm diameter dental implant
  • Significant cost savings vs. major competitors

components

Multi-unit abutments system provides the tools to restore even compromised edentulous cases. With a wide variety of abutment angles, collar heights and platform diameters, no system better equips you to plan for your patients' individual needs. The Multi-unit abutment's intelligent design and restorative flexibility is matched only by its ease of use and surgical efficiency.

Straight Multi-unit abutments

Click on the item number in the chart below to view the components in the online catalog.

3.0mm platform3.0mm platform
3.5mm platform3.5mm platform
4.5mm platform4.5mm platform
5.7mm platform5.7mm platform
1mm collar
3.0mm platform3.0mm platform TP3MU1
3.5mm platform3.5mm platform PYMU1
4.5mm platform4.5mm platform PGMU1
5.7mm platform5.7mm platform PBMU1
2mm collar
3.0mm platform3.0mm platform TP3MU2
3.5mm platform3.5mm platform PYMU2
4.5mm platform4.5mm platform PGMU2
5.7mm platform5.7mm platform PBMU2
3mm collar
3.0mm platform3.0mm platform TP3MU3
3.5mm platform3.5mm platform PYMU3
4.5mm platform4.5mm platform PGMU3
5.7mm platform5.7mm platform PBMU3
4mm collar
3.0mm platform3.0mm platform -
3.5mm platform3.5mm platform PYMU4
4.5mm platform4.5mm platform PGMU4
5.7mm platform5.7mm platform -
5mm collar
3.0mm platform3.0mm platform -
3.5mm platform3.5mm platform PYMU5
4.5mm platform4.5mm platform PGMU5
5.7mm platform5.7mm platform -

Each straight Multi-unit abutment comes packaged with a cover cap premounted on a color-coded carrier. Titanium alloy.

Multi-unit Abutments system provides the tools to restore even compromised edentulous cases. With a wide variety of abutment angles, collar heights and platform diameters, no system better equips you to plan for your patients' individual needs. The Multi-unit abutment's intelligent design and restorative flexibility is matched only by its ease of use and surgical efficiency.

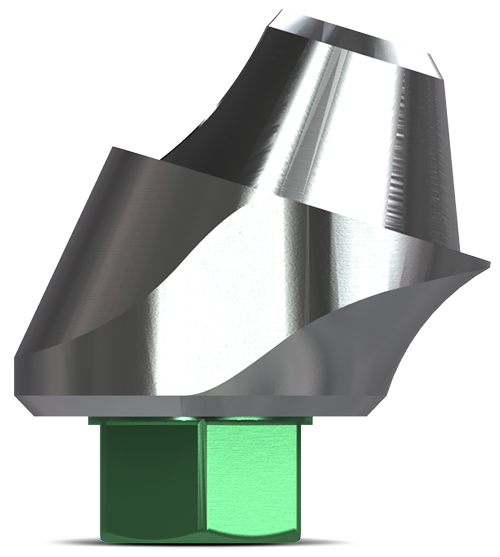

Angled Multi-unit abutment
17° angled Multi-unit abutments

Click on the item number in the chart below to view the components in the online catalog.

3.0mm platform 3.0mm platform
3.5mm platform 3.5mm platform
4.5mm platform 4.5mm platform
5.7mm platform 5.7mm platform
2.25mm collar
3.0mm platform 3.0mm platform TPMU172
3.5mm platform 3.5mm platform PYMU172
4.5mm platform PGMU172
5.7mm platform PBMU172
3mm collar
3.0mm platform 3.5mm platform TPMU173
3.5mm platform 3.5mm platform PYMU173
4.5mm platform 4.5mm platform PGMU173
5.7mm platform 5.7mm platform PBMU173
4mm collar
-
3.5mm platform 3.5mm platform PYMU174
4.5mm platform 4.5mm platform PGMU174
-
30° angled Multi-unit abutments

Click on the item number in the chart below to view the components in the online catalog.

3.0mm platform 3.0mm platform
3.5mm platform 3.5mm platform
4.5mm platform 4.5mm platform
5.7mm platform 5.7mm platform
3mm collar
3.0mm platform 3.0mm platform TP3MU303
3.5mm platform 3.5mm platform PYMU303
4.5mm platform 4.5mm platform PGMU303
5.7mm platform 5.7mm platform PBMU303
4mm collar
3.0mm platform 3.0mm platform TP3MU304
3.5mm platform 3.5mm platform PYMU304
4.5mm platform 4.5mm platform PGMU304
5.7mm platform 5.7mm platform PBMU304
5mm collar
-
3.5mm platform 3.5mm platform PYMU305
4.5mm platform 4.5mm platform PGMU305
-

spec chart

surface
standard
Laser-Lok
indexing
hexed
non-hexed
platform diameter
3.0mm
(gray)
3.5mm
(yellow)
4.5mm
(green)
5.7mm
(blue)
material
titanium alloy
abutment angulation
straight
17°
30°
collar height
1mm
2mm
2.25mm
3mm
4mm
5mm

literature

Not available in all countries.
Unigrip is a registered trademark of Nobel Biocare AB.



×
