Pro Zygoma dental implants

Pro Zygoma dental implants

Featuring the Tapered Pro Conical deep conical design, the BioHorizons Remote Anchorage System is designed for predictable immediate treatment and surgical efficiency with a best-in-class conical connection.1

Purchase

Pro Zygoma implant features

Proven conical connection
Implants feature a deep conical connection based on the Tapered Pro Conical design to provide superior positional stability, fewer micromovements and predictable, immediate treatment plans.
Proven conical connection
Single prosthetic platform
A single prosthetic connection across Tapered Pro Conical & Pro Zygoma implants streamlines full-arch treatment planning and simplifies restorative workflows.
Single prosthetic platform
Multiple implant diameters
With implant diameter options of 3.8mm and 4.2mm, choose the optimal implant to achieve the required primary stability.
Multiple implant diameters
Implant material
Made from Grade 23 Titanium alloy, Pro Zygoma implants offer confidence in demanding cases with high strength requirements.
Implant material

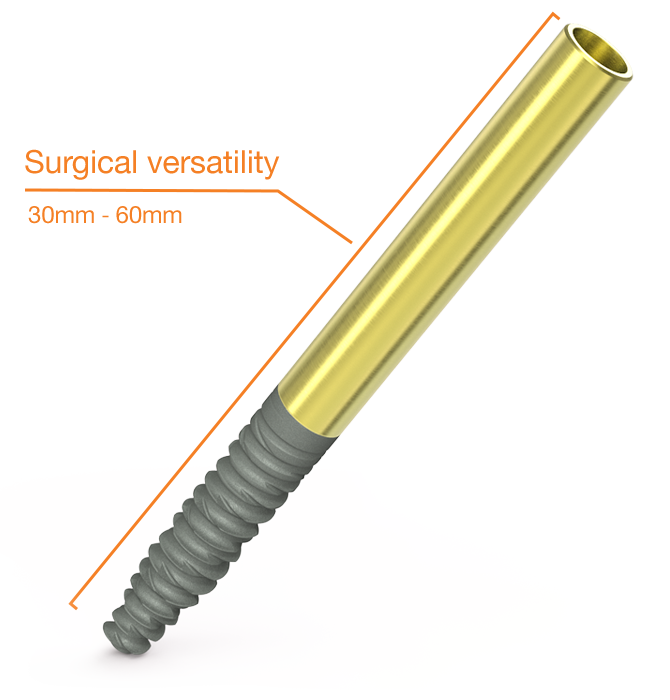

Surgical versatility
Comprehensive length offerings from 30mm to 60mm, enabling effective bicortical anchorage for hybrid and quad zygo treatment options.
Surgical versatility
Advanced cutting flute
Advanced cutting flute design for torque optimization and improved bone chip dispersion.
Advanced cutting flute
Advanced cutting flute Single prosthetic platform Multiple implant diameters Implant material Surgical versatility Advanced cutting flute

Surgical versatility

Loading viewer…

Select a callout above

Click any of the buttons to rotate the model and reveal details.

Remote Anchorage Surgical Kit

Site initialization
Use the spade drills and cylindrical diamond burs to mark your osteotomy site and create a channel for Pro Zygoma drills.
initial
Pro Zygoma drills
Short, medium, and long length drills available to complete your osteotomy within three steps.
drills
Implant drivers
Short and long drivers available for both handpiece and ratchet connections.
Multiple implant diameters
Try-ins
Every kit comes with 45°, 52°, and 60° try-ins laser marked with gingival heights for easy abutment selection.
tryins
Manual implant driver handle & torque wrench
The surgical kit includes a manual handle for implant placement and a torque wrench capable of measuring up to 80 Ncm of torque.
torque
initial drills drivers tryins torque

Restorative efficiency

The expanded multi-unit abutment portfolio now includes angulations from 17° to 60° with gingival heights up to 3mm and slim abutment profiles. It is specifically designed to accommodate diverse anatomical needs.

Hover over an abutment
to learn more

Five Conical Multi-unit Angled Abutment variants: 17, 30, 45, 52, and 60 degrees
Learn more about Conical Multi-unit Angled Abutments

Advanced remote anchorage cadaver course

Advance your full-arch capabilities with this hands-on course on remote anchorage solutions for complex cases. Through didactic lectures, dry-lab training and cadaver surgery, participants gain a comprehensive understanding of remote anchorage principles in full-arch rehabilitation.

Register now

Additional information

Remote Anchorage Solutions brochure
Catalog and surgical manual
Prosthetic catalog
Surgical kit reference chart
Drill usage chart

Pro Zygoma dental implant | Coming Soon

1. Semper-Hogg, W et al. Analytical and experimental position stability of the abutment in different dental implant systems with a conical implant–abutment connection. Clinical Oral Investigation (2013) 17: 1017.
Reorder Items
Additional information
10 items
How to Reorder
  • • Drag items by their ⋮⋮ handle to reorder
  • • Move items between different accordion sections
  • • Drop into empty areas to create new groupings
  • ⋮⋮
    Documents
    • ⋮⋮
      Remote Anchorage Solutions brochure
    • ⋮⋮
      Catalog and surgical manual
    • ⋮⋮
      Prosthetic catalog
    • ⋮⋮
      Surgical kit reference chart
    • ⋮⋮
      Drill usage chart
  • ⋮⋮
    Videos
    • ⋮⋮
      Pro Zygoma dental implant | Coming Soon
  • ⋮⋮
    References & footnotes
    • ⋮⋮
      1. Semper-Hogg, W et al. Analytical and experimental position stability of the abutment in different dental implant systems with a conical implant–abutment connection. Clinical Oral Investigation (2013) 17: 1017.
Changes will be applied immediately after saving

Full Product Reference

Conical Multi-unit 17° Angled Abutment

Part numberGingival height
CR17MU22.0mm
CR17MU33.0mm
CR17MU44.0mm

Conical Multi-unit 30° Angled Abutment

Part numberGingival height
CR30MU22.0mm
CR30MU33.0mm
CR30MU44.0mm

Conical Multi-unit 45° Angled Abutment

Part numberGingival heightVariant
CR45MU151.5mmStandard
CR45MU252.5mmStandard
CR45MU202.0mmSlim
CR45MU303.0mmSlim

Conical Multi-unit 52° Angled Abutment

Part numberGingival heightVariant
CR52MU151.5mmStandard
CR52MU252.5mmStandard
CR52MU202.0mmSlim

Conical Multi-unit 60° Angled Abutment

Part numberGingival height
CR60MU151.5mm
CR60MU252.5mm
