Cytoplast™ Ti-Reinforced Membrane

Cytoplast Ti-Reinforced d-PTFE Membrane

Cytoplast Ti-Reinforced d-PTFE Membrane

Cytoplast Titanium-Reinforced d-PTFE Membrane

Cytoplast Ti-Reinforced d-PTFE Membrane

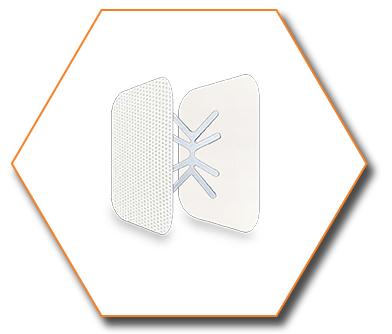

The traditional frame design, incorporating delicate and strategically-placed titanium "struts," has more than 25 years of clinical history and successful use in guided bone regeneration. Cytoplast Ti-250 membranes provide a wide range of coverage solutions for cases involving extraction sites, bony defects and ridge augmentation (250 microns thick).

features include:

  • non-resorbable material allows the clinician to dictate healing time
  • passive fit with no memory retention
  • lightweight framework is easy to trim and is compliant with overlying soft tissues

Less titanium bulk
Allows for greater versatility in shaping and placement

Delicate, lightweight framework
Membranes are easy to trim and compliant with overlying soft tissues

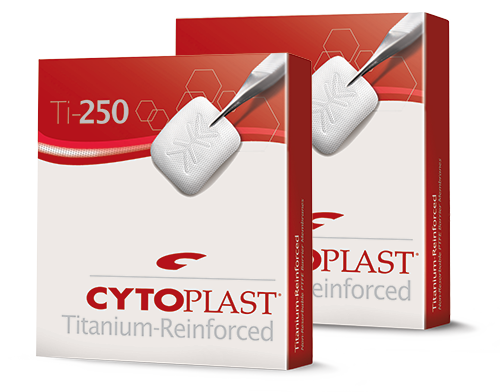

Cytoplast Titanium-Reinforced d-PTFE Membranes
Passive fit with no memory retention
Easy to form in three dimensions to mold and shape for tenting and space maintenance

Dense PTFE prevents tissue ingrowth
Makes removal of membrane easier when compared to removal of titanium mesh

ordering information & applications1

OG-TI250ANL-2
Ti-250 Anterior Narrow
(pack of 2)
Coverage of narrow single-tooth extraction sites, especially where one bony wall is missing.
12mm x 24mm
(250 µm thick)
Cytoplast TI-250 Anterior Narrow
OG-TI250AS-2
Ti-250 Anterior Singles
(pack of 2)
Coverage of single-tooth extraction sites, especially where one or more bony walls are missing.
14mm x 24mm
(250 µm thick)
Cytoplast TI-250 Anterior Singles
OG-TI250ATC-2
Ti-250 Anterior Trans Crestal
(pack of 2)
Designed for bony defects between adjacent teeth, including ridge augmentation.
24mm x 38mm
(250 µm thick)
Cytoplast TI-250 Anterior Trans Crestal
OG-TI250BL-2
Ti-250 Buccal
(pack of 2)
Treatment of large buccal defects.
17mm x 25mm
(250 µm thick)
Cytoplast TI-250 Buccal
OG-TI250PD-2
Ti-250 Posterior Distal
(pack of 2)
Designed for large bony defects, including distal extension of the posterior ridge.
38mm x 38mm
(250 µm thick)
Cytoplast TI-250 Posterior Distal
OG-TI250PL-2
Ti-250 Posterior Large
(pack of 2)
Suited for treating large bony defects, including ridge augmentation.
25mm x 30mm
(250 µm thick)
Cytoplast TI-250 Posterior Large
OG-TI250PS-2
Ti-250 Posterior Singles
(pack of 2)
Suited for covering posterior extraction sites and limited ridge augmentation.
20mm x 25mm
(250 µm thick)
Cytoplast TI-250 Posterior Singles (pack of 2)
OG-TI250PST-2
Ti-250 Posterior Singles T2
(pack of 2)
Designed for grafting extraction sites and limited ridge augmentation.
25mm x 36mm
(250 µm thick)
Cytoplast Ti-250 Posterior Singles T2
OG-TI250PTC-2
Ti-250 Posterior Trans Crestal
(pack of 2)
Designed for large bony defects between adjacent teeth, including ridge augmentation.
38mm x 38mm
(250 µm thick)
Cytoplast TI-250 Posterior Trans Crestal
OG-TI250XL-2
Ti-250 XL
(pack of 2)
Sized to cover very large bony defects, including ridge augmentation. Larger titanium spans more of the PTFE membrane for additional rigidity.
30mm x 40mm
(250 µm thick)
Cytoplast TI-250 XL
OG-TI250XLK-2
Ti-250 XLK
(pack of 2)
Sized to cover large bony defects, including ridge augmentation. Smaller titanium frame allows for greater versatility when shaping.
30mm x 40mm
(250 µm thick)
Cytoplast TI-250 XLK

literature

  1. Reference manufacturer's Instructions for Use (IFU) package insert.
Not available in all countries.
