Tapered HD surgical kit

Tapered HD surgical kit

Tapered HD surgical kit

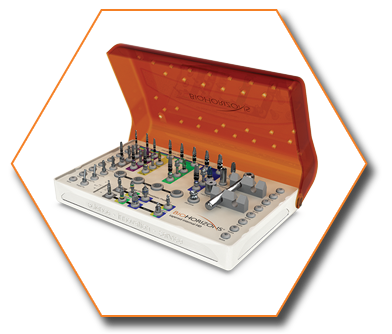

Tapered HD Surgical Kit

Includes the instrumentation required to place: Tapered Plus, Tapered 3.0, Tapered Tissue Level and Tapered Internal including the 3.4mm diameter and 18mm lengths.

  • includes Tapered HD instruments
  • versatile, removable, hinged lid
  • 40% smaller and 40% lighter than other kits
  • easy to disassemble for cleaning
  • implant staging area for implant vials during surgery
  • empty spare slots for other instrumentation such as stop drills or extended shank drills

Tapered HD Surgical Kit

surgical kit features

The surgical kit features an intuitive color-coded layout that guides the surgeon through the instrument sequence. The drilling section is color-coded by implant diameter. The implant driver section is color-coded by prosthetic connection.

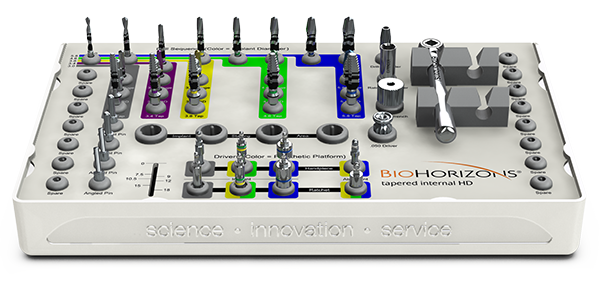

TSK4000 Tapered HD kit

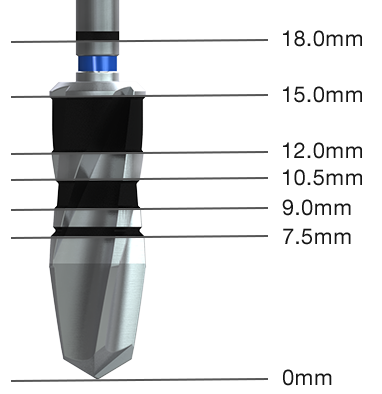

HD drill markings

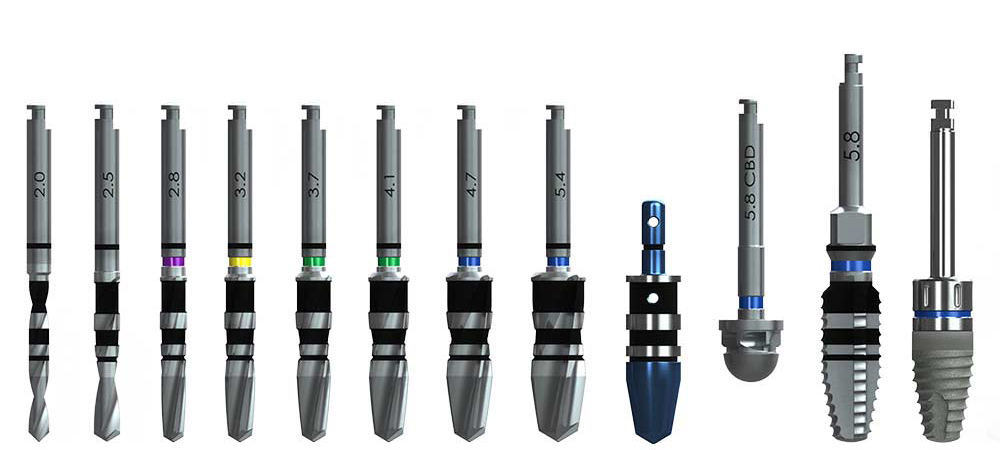

HD drills

The Tapered HD drills feature highly efficient cutting flutes for crisp osteotomies in even the densest bone. Simplified drill markings correspond to the six Tapered Internal family implant lengths. Drills should be replaced every 12-20 osteotomies for maximum cutting efficiency.

  • cutting flutes designed for maximum efficiency
  • non-reflective surface for high visibility
  • simplified drill markings match each implant length
  • compatible with Tapered Internal, Plus, 3.0 and Tissue Level
  • creates 12-20 osteotomies depending on bone density
  • recommended drill speed 1,500-2,000 rpm (2.0 & 2.5mm), 1,000 rpm (all others)

additional information
